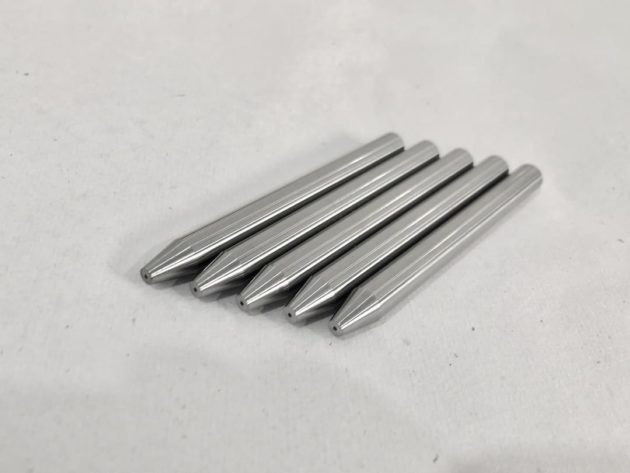

Tungsten Carbide Abrasive Waterjet Nozzles

Abrasive Waterjet Nozzles are also called mixing tubes or focusing tubes which are mainly installed in waterjet

cutting machine and they can cut materials such as metal, ceramic, stone, glass, and other materials.

They are especially wear-resistant. In particular, when compressing water to 42,000 Psi and shoot it

out of the nozzles, the water can cut inch-thick metal easily by using the aforementioned 42,000 Psi

water jet laced with garnet abrasive.

In addition to the great performance of wear resistance, We want to ensure you have the right solution

for the best cost-effectiveness, too. So we have developed 4 innovative product lines of Abrasive Waterjet

Nozzles. Besides, our mixing tubes are suitable for all modern cutting head systems, therefore they can

definitely help you to cut out the way of success.

MT300 Abrasive Waterjet Nozzles, MT200 Abrasive Waterjet Nozzles, MT100 Abrasive Waterjet Nozzles.

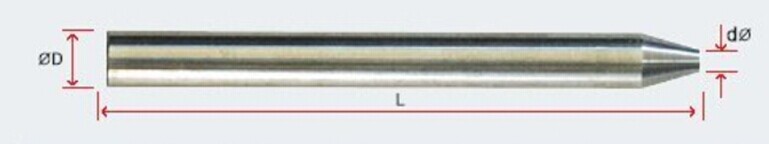

O.D		I.D		Length
mm	(inch)	mm	Inch	mm	inch
6	0.236	0.76	0.03	76.2	3
6	0.236	0.8	1/32	70	2-3/4
6	0.236	1.02	0.04	70	2-3/4
6	0.236	1.02	0.04	76.2	3
6.35	1/4	0.5	0.02	76.2	3
6.35	1/4	0.6	0.023	76.2	3
6.35	1/4	0.76	0.03	50.8	2
6.35	1/4	0.76	0.03	76.2	3
6.35	1/4	1.02	0.04	50.8	2
6.35	1/4	1.02	0.04	76.2	3
6.35	1/4	1.14	0.045	76.2	3
6.35	1/4	1.2	3/64	76.2	3
6.35	1/4	1.27	0.05	76.2	3
6.7	0.264	0.7	0.028	70	2-3/4
6.7	0.264	1	0.039	76.2	2-3/4
7.14	9/32	0.5	0.02	76.2	3
7.14	9/32	0.76	0.03	76.2	3
7.14	9/32	1.02	0.03	101.6	4
7.14	9/32	1.02	0.04	76.2	3
7.14	9/32	1.27	0.05	101.6	4
7.62	0.03	1.302	0.04	76.2	3
7.62	0.03	1.27	0.05	76.2	3
7.97	0.313	1.07	0.042	101.6	4
7.97	0.313	0.5	0.02	101.6	4
7.97	0.313	0.76	0.03	101.6	4
9.43	0.371	0.5	0.02	76.2	3
9.43	0.371	0.76	0.03	76.2	3
9.43	0.371	1.02	0.04	76.2	3
