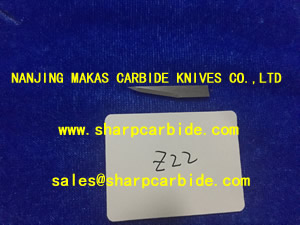

TC knife blade Z 22

cutting depth approx. 14 mm
no. 3910315

suitable for machine manufacturer: original blade no.

Comagrav

CombiPro

Dyss

Esko Kongsberg: ( G42458265, 42458265, BLD-SF422, (i-422) )

iEcho: ( E22 )

Mécanuméric: 100610380

Summa: ( 500-0810, 500-9810 )

Zünd: 3910315, Z22

recommended materials:

Corrugated, Corrugated plastic, Corrugated sandwich, Sandwich board, Foam board, Folding Carton, Magnetic foil, Polyester fabric, Rubber, Felt, Foam

Zund Blade Z22 HTZ-22compatible knife for Zund automated cutting machine
Description: Fine, robust blade with low overcut; designed to cut small radii and intricate detail. Similar to HTZ-20, but more robust and with a larger overcut.

Thickness: 0,63 mm.

Tools: EOT and POT.

Composition: HM - Hard Metal.

Materials: Corrugated cardboard: B, C, BC, EB and E flute, Light foam core, Foam, Folding carton: 100 - 1500 g, Polyester fabric: coated textiles, Rubber, ejection rubber, Magnetic material, Corrugated plastic and Felt.

Compatible Brand
Zund
Equivalent
Z22
Thickness
0.63 mm.
Max. cutting depth
13 mm
Pre-cut
1.2 + 0.2 x Tm
Post-cut
-
Composition
HM - Metal Duro
Tool
POT / EOT
Recommended materials
Cardboard
Corrugated
Corrugated plastic
Felt
Foam
Foam board / Foam
Folding carton
Magnetic material
Polyester fabric
Rubber
Sandwich board
Associated brands of raw materials
Airplac Foamboards
Egafix
Espanso Cartonato
Foam-X
Forex
Gatorfoam
Kapamount
Kapaplast
Kromaplast
Maxxboard

Item no.

3910315

Knife type

Oscillating blade pointed

Properties

Fine, robust blade with low overcut; designed to cut small radii and intricate detail. Similar to Z20, but more robust and with a larger overcut.

Recommended materials

Corrugated

Corrugated plastic

Sandwich board

Foam board/Foam

Folding Carton

Magnetic foil

Polyester fabric

Rubber

Felt

Pre-cut

1.2 + 0.2 x TM

Post-cut

Max. cutting depth

14 mm

Knife thickness

0.63 mm

Knife material

HM/Carbide
